Rincian produk
Tempat asal: Cina
Nama merek: Warom
Sertifikasi: IECEx; ATEX; CU-TR;UL
Nomor model: BDD95
Syarat Pembayaran & Pengiriman
Kemasan rincian: kemasan karton/paket kotak kayu
Syarat-syarat pembayaran: T/T
Explosion protection: |
CENELEC,IEC,NEC |
Can be used in: |
Zone 1,2,21,22 Class I, Zone 1,2 Division 2, Group A, B, C, D |
Applicable lamp and power (max.160W): |
LED: 60W, 90W, 120W, 160W |
Two enclosure types: |
90, 160 |
Explosion protection: |
CENELEC,IEC,NEC |
Can be used in: |
Zone 1,2,21,22 Class I, Zone 1,2 Division 2, Group A, B, C, D |
Applicable lamp and power (max.160W): |
LED: 60W, 90W, 120W, 160W |
Two enclosure types: |
90, 160 |
| Global (IECEx) | IECEx CQM 15.0047X |
| Gas dan debu |
Ex db eb op adalah IIC T□1)Gigabit Ex tb op adalah IIIC T□1)Db |
| Eropa (ATEX) | EPT 15 ATEX 2315X |
| Gas dan debu |
|
| Sertifikat | IECEx; ATEX; CU-TR; UL |
| Kesesuaian dengan standar | EN; IEC |
| Tingkat perlindungan | IP66 |
| Suhu lingkungan | -40°C~+55°C(+40°C) |
| Bahan |
Alloy Aluminium bebas tembaga, permukaan berlapis bubuk, kuning ((RAL1021) Kaca keras, berdiri 4J dampak |
| Berat badan | 8.5 ~ 12.2kg |
| Dimensi | 330x330x234mm |
| Spesifikasi lampu | LED terintegrasi, Multiple LED |
| Daya lampu (W) | 60W 90W |
| Suhu Warna | 5700K |
| Tegangan nominal | 100~300V AC 50/60Hz,100-250V DC |
| Fluks cahaya nominal | 6160 ~ 32840lm |
| Terminal | 3 x 1,5 ~ 4mm2(L+N+PE) |
| Masuk kabel | 2 x M25 x 1,5 colokan |
| Kelenjar kabel | DQM-I (Ex e) dianjurkan. |

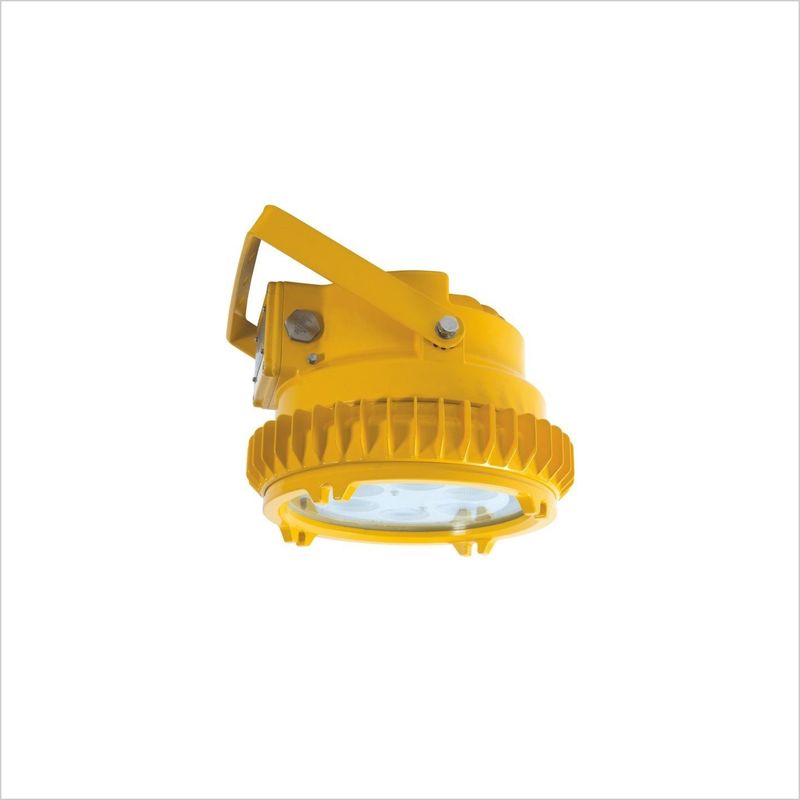

Lampu LED tahan led BDD95
(Download di sini:BDD95 Series Led Lampu tahan led.pdf)
Global (IECEx): IECEx CQM 15.0047X
(Download di sini:IECEx CQM 15.0047X Nomor Edisi1.pdf)
