Rincian produk
Tempat asal: Cina
Nama merek: Warom
Sertifikasi: IECEx;ATEX;CU-TR
Nomor model: BnY81
Syarat Pembayaran & Pengiriman
Kemasan rincian: kemasan karton/paket kotak kayu
Syarat-syarat pembayaran: T/T
Explosion Protection: |
EN, IEC |
Can be used in: |
Zone 2,21,22,Class I Division 2 Groups A, B, C, ... |
LED light fittings: |
Built-in LED driver, wide voltage input, CC-CV (constant current - constant voltage) output, power factor≥0.95. |
Lamp power (W): |
36W(18W) x 2； 36W(18W) x 1 |
Lamp specification: |
T8 tube |
Dimensions: |
1360x170x114mm |
Explosion Protection: |
EN, IEC |
Can be used in: |
Zone 2,21,22,Class I Division 2 Groups A, B, C, ... |
LED light fittings: |
Built-in LED driver, wide voltage input, CC-CV (constant current - constant voltage) output, power factor≥0.95. |
Lamp power (W): |
36W(18W) x 2； 36W(18W) x 1 |
Lamp specification: |
T8 tube |
Dimensions: |
1360x170x114mm |
| Global (IECEx) | IECEx CQM 12.0046X |
| Gas dan debu |
Ex nA IIC T4 Gc Ex t IIIC T80°C Db IP66 |
| Eropa (ATEX) |
LCIE 12 ATEX 1009X (gas) LCIE 12 ATEX 3019X (debu) |
| Gas dan debu | II 3 G Eks n A II C T4 Gc |
| II 2 D Ex t IIIC T80°C Db IP66 |
|
| Sertifikat | IECEx; ATEX; |
| Kesesuaian dengan standar | EN; IEC |
| Tingkat perlindungan | IP66 |
| Suhu lingkungan | -20°C~+55°C |
| Bahan |
Polikarbonat, berdiri 7J dampak, tahan korosi Diffuser Polikarbonat, transmisi cahaya tinggi, berdiri 7J dampak, tahan korosi |
| Berat badan | 2.25 ~ 5.25kg |
| Dimensi | 1360x170x114mm |
| Spesifikasi lampu | Tabung T8 |
| Daya lampu (W) | 36W(18W) x 2; 36W(18W) x 1 |
| Kekuatan darurat (W) | 36W x 1 |
| Waktu awal darurat | 0.3s |
| Waktu pengisian | 24 jam |
| Waktu pencahayaan darurat | 120/180 Mins |
| Tegangan nominal | 100~300V AC 50/60Hz |
| Fluks cahaya nominal | 1300 ~ 6500lm |
| Terminal | 3 x 1,5 ~ 4mm2(L+N+PE) |
| Masuk kabel | 2 xФ26: 2 xM25 x1.5 kelenjar kabel (DQM-I Ex e, plastik) |
| Diameter luar kabel yang tersedia | Φ9 ~ Φ16 (mm) |

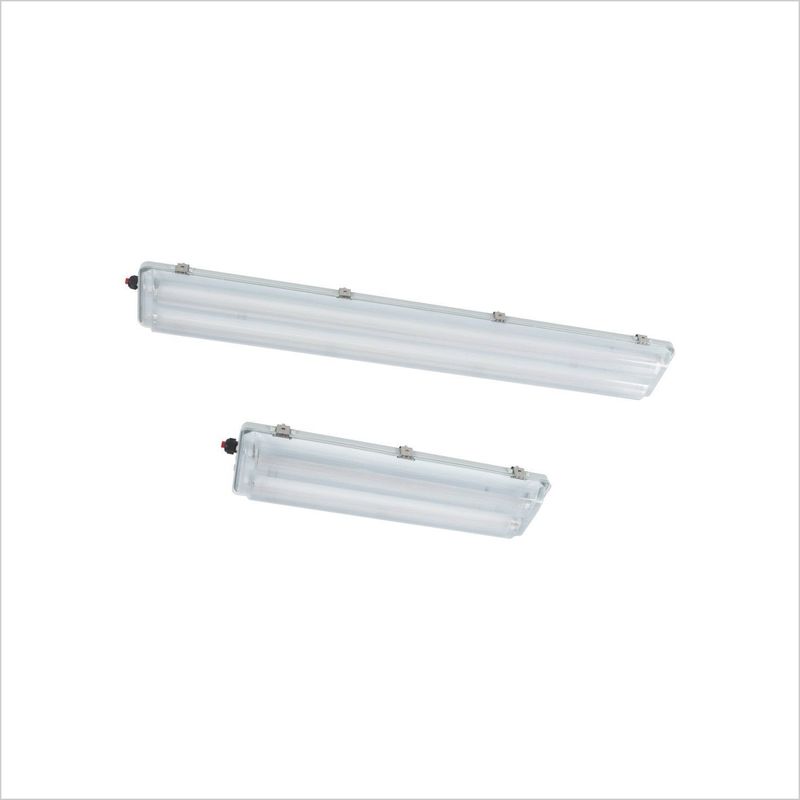

Perlengkapan lampu tahan ledakan untuk lampu neon seri BnY81
(Download di sini:BnY81 Seri Lampu Lampu Blast-proof untuk Lampu Fluoresen.pdf)
Global (IECEx): IECEx CQM 12.0046X
(Download di sini:IECEx CQM 12.0046X Nomor Edisi0.pdf)
