Rincian produk
Tempat asal: Cina
Nama merek: WAROM
Nomor model: HRFM
Syarat Pembayaran & Pengiriman
Dapat digunakan di: |
Zona 1 dan Zona 2 Zona 21 dan Zona 22 Kelas I, Zona 1 dan Zona 2 Kelas I, Divisi 2, Grup A, B, C, D |
Ruang tahan ledakan: |
Enklosur aluminium dengan penutup PC Peningkatan Enklosur Keselamatan: Enklosur poliamida dengan PC |
Tipe berkedip: |
Penutup PC Merah |
Tipe non-flashing: |
Penutup PC hitam |
Dapat digunakan di: |
Zona 1 dan Zona 2 Zona 21 dan Zona 22 Kelas I, Zona 1 dan Zona 2 Kelas I, Divisi 2, Grup A, B, C, D |
Ruang tahan ledakan: |
Enklosur aluminium dengan penutup PC Peningkatan Enklosur Keselamatan: Enklosur poliamida dengan PC |
Tipe berkedip: |
Penutup PC Merah |
Tipe non-flashing: |
Penutup PC hitam |
| Global (IECEx) | IECEx (applied for) |
| Gas and dust |
Ex eb ib mb IIC Gb Ex db ib mb IIC Gb |
| Europe (ATEX) | ATEX (applied for) |
| Gas and dust |
II 2 G Ex eb ib mb IIC Gb
|
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Ambient temperature | -60℃~+90℃ |
| Enclosure Material |
Ex eb: Plastic Ex db: Aluminium alloy |
| Dimensions | As design |
| Enclosure colour | BLack/Red |
| Exposed fastener | Stainless steel |
| Rated voltage | 48~250V AC/DC, 12~36V AC/DC |
| Rated current | <100mA, <50mA |
| Sound Pressure | 60dB(30cm from the source) |
| Mounting | Cover mounting |

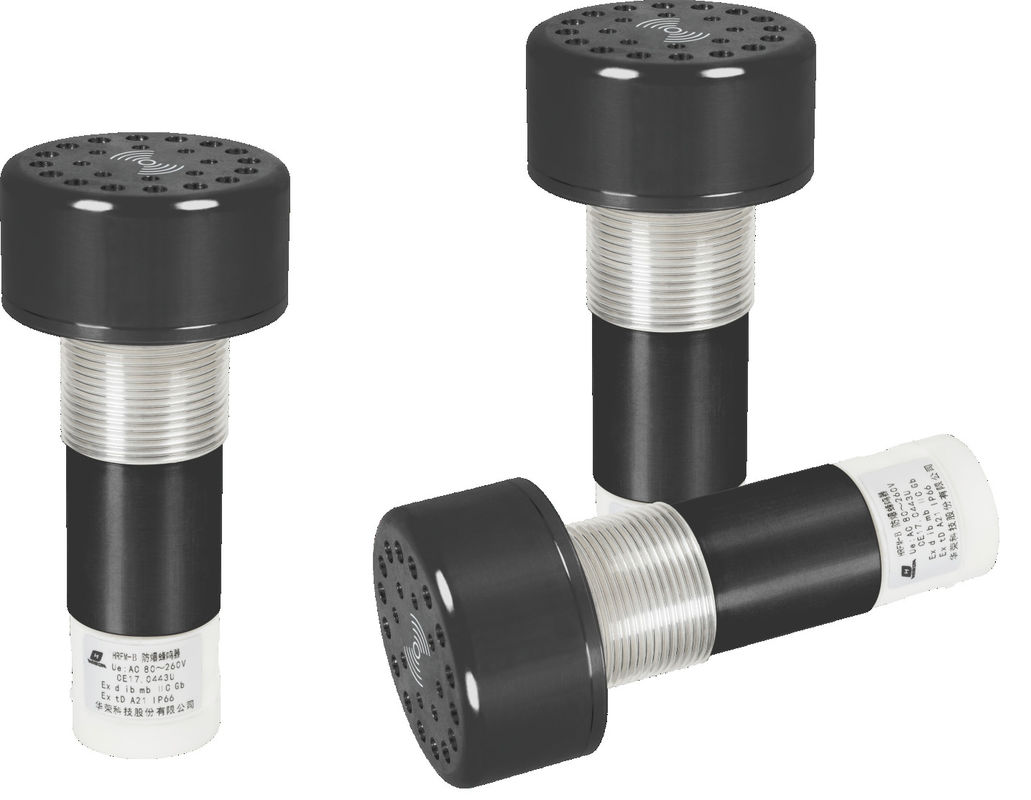

HRFM Series Explosion-proof Buzzer
(Download here:HRFM Series Explosion-proof Buzzer.pdf)
